Polyester Filter Mesh for Air & Water Filtration & Purification

Polyester filter mesh is made of 100% polyester monofilament yarn, which is woven into mesh fabrics. Polyester filter mesh is an alternative to nylon filter mesh, which is widely used in medical, industrial, automotive, milling and water industries.

  • 25–420 meshes for different filtration requirements.

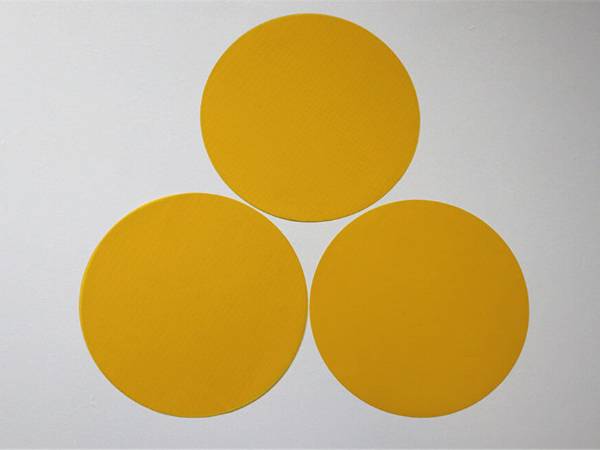

  • Available for filter disc, filter tube, filter belt and filter bags.
  • White, yellow, black and other customized colors.
  • Ideal for commercial and industrial filtration and separations.
  • Excellent in liquid, powder, dust, gas and other element filtration.
Three rolls of polyester filter mesh with white, yellow and black color.
Available Types
Line
Four rolls of polyester filter mesh fabric in white, yellow and black color.

Filter Mesh Fabric

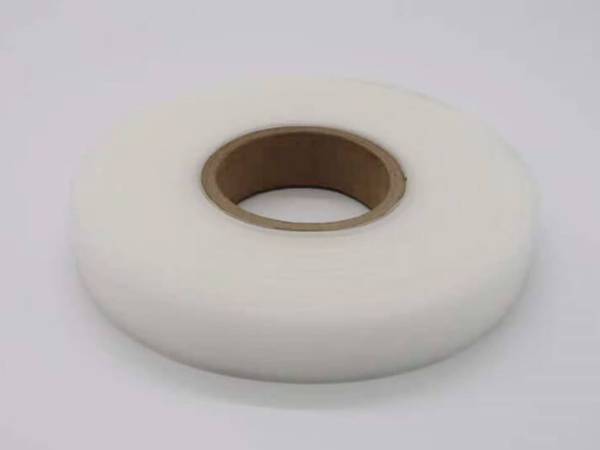

A roll of polyester filter belt on gray background.

Filter Belts

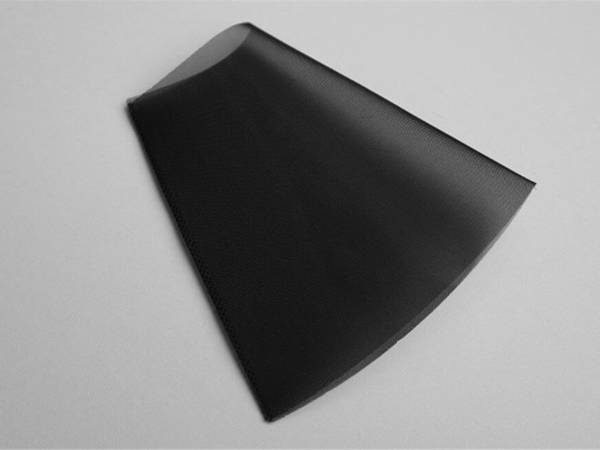

A piece of black color polyester filter tube on gray background.

Filter Tubes

Advantages
Line
  • Acid and alkali resistance
  • High temperature resistance
  • Easy cleaning
  • Easy to install and replace
  • High tensile strength
  • Even mesh and accurate filtration
Applications
Applications
Line
  • Air purification
  • Water filtration
  • Dust filtration
  • Paint coating filtration
  • Medical filtration
  • Automobile filtration

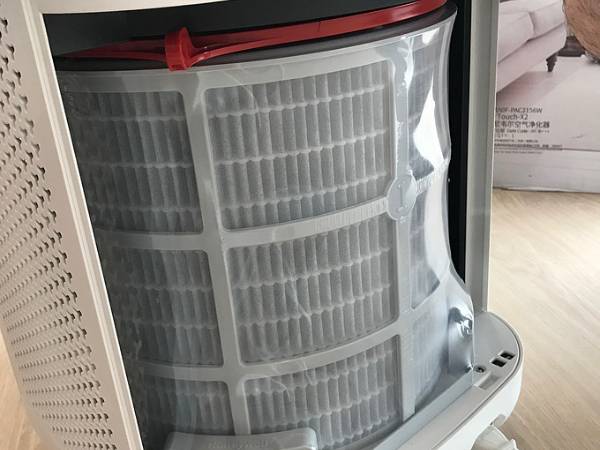

A basket type polyester filter mesh is installed on the air purifier.

Air purification

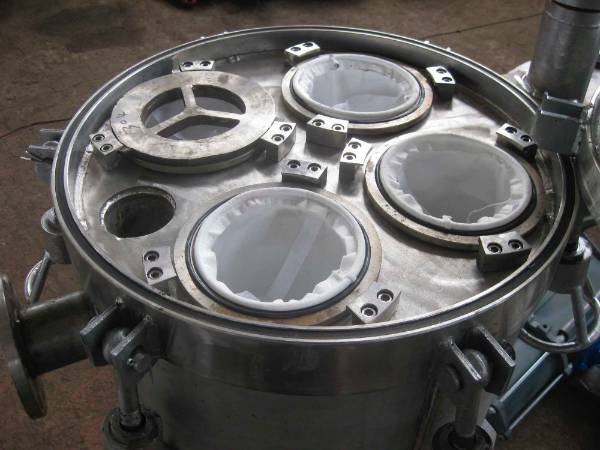

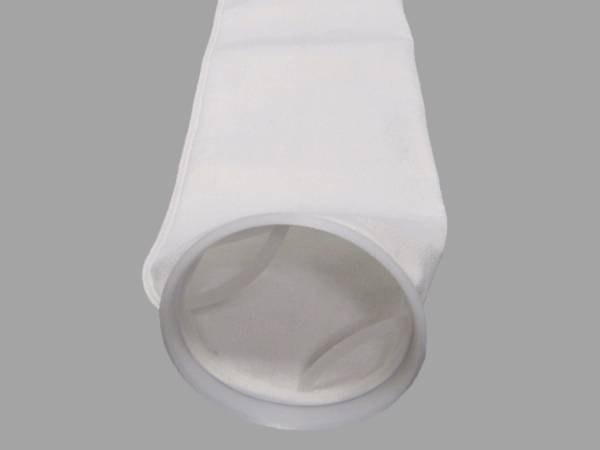

A polyester filter bag is installed in the bag filter housing.

Water purification

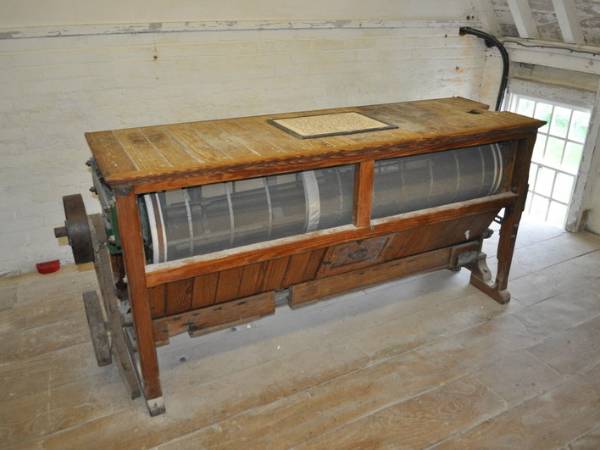

A polyester mill mesh tube is installed on the milling dresser.

Milling

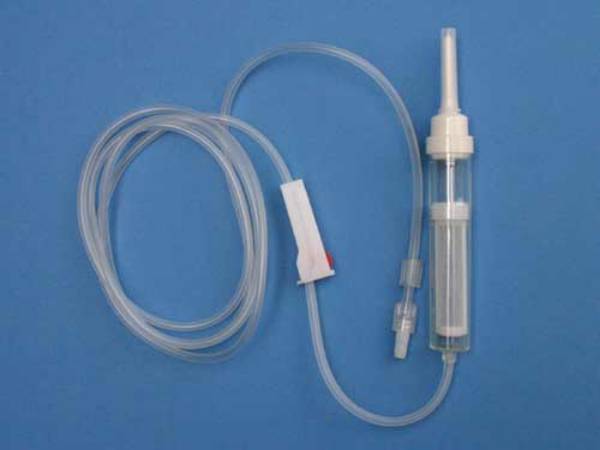

A set of blood filter transfusion on the blue background.

Medical filter

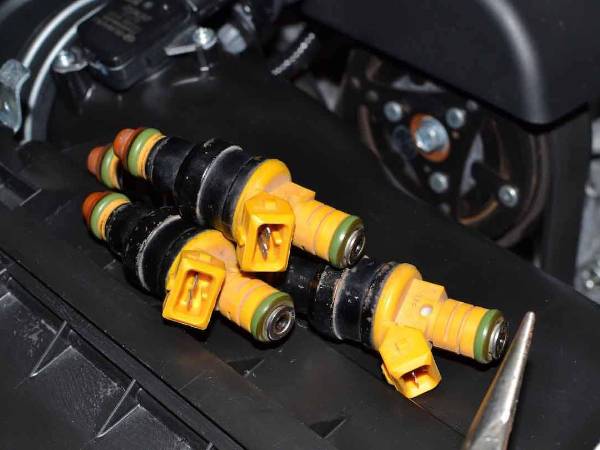

Three injector in the car.

Injector filter

Dimensions
Line
  • Material: 100% monofilament polyester wire.
  • Mesh Count Range: 10–420 mesh/inch.
  • Weaving method: plain weave, twill weave, dutch weave.
  • Width: 115/127/145/165 cm and maximum is 365 cm.
  • Length: 30–100 m and customized lengths.
  • Color: white, black, yellow and customized colors.
SEE MORE SEE LESS
Popular Specifications of Polyester Filter Mesh
Specification Mesh Count ThreadDiameter Aperture Opening Thickness Ink Through Volume Theoretically TensileStrength
mesh/inch micron micron % micron cm3/m2 n/cm
10-200 25 200 816 65 440 276 42
10-250 25 250 740 53 465 246 60
12-200 30 200 522 47 485 228 62
16-200 40 200 435 47 420 189 48
20-140 50 140 340 46 280 129 52
20-180 50 180 320 41 350 152 56
24-100 60 100 316 58 190 109 48
24-120 60 120 300 51 210 105 42
32-100 80 100 200 43 160 69 42
36-100 90 100 178 41 175 72 42
39-55 100 55 201 62 100 62 30
39-80 100 80 172 46 142 65 42
43-80 110 80 150 41 130 55 35
48-70 120 70 135 41 115 46 32
53-55 135 55 134 50 105 53 34
54-64 137 64 115 39 102 40 30
59-55 150 55 100 40 93 39 32
64-55 160 55 101 42 105 44 30
64-64 160 64 90 32 106 34 35
72-48 180 48 94 46 80 37 32
72-55 180 55 75 29 92 27 32
77-55 195 55 70 25 88 24 29
80-48 200 48 78 30 84 24 29
80-55 200 55 70 25 88 24 29
90-48 230 48 55 25 78 20 33
100-40 250 40 58 32 65 21 29
110-40 280 40 48 27 65 17 30
120-34 300 34 45 30 55 16 30
120-40 300 40 40 20 55 16 29
140-31 350 31 35 26 48 13 27
140-34 350 34 30 20 55 10 30
150-31 380 31 32 23 47 10 28
150-34 380 34 30 20 69 10 30
165-31 420 31 25 17 49 8 28
