Stainless Steel Screen Printing Mesh – Good Heat-Melting & Solvent Resistance

Stainless steel screen printing mesh is made of plain weave stainless steel wire threads with high tensile strength and yield stress properties.

It has excellent chemical and physical properties, uniform opening and high accuracy performance to be used in various screen printing industries and applications. Especially, it performs good in solar panel screen printing and PCB screen printing applications.

 Two rolls of stainless steel screen printing mesh on white background.
Advantages
Line
  • High corrosive resistance.
  • Good heat-melting resistance.
  • Good solvent resistance.
  • High tension and low elongation.
  • Wide ranges of mesh counts for choice.
  • Special discount for large orders.
  • Large stocks for urgent orders.
  • ISO certificated factory
Applications
Applications
Line
  • Solar panel printing
  • PCB (Printed Circuit Boards) screen printing
  • Textile screen printing
  • Glass screen printing
  • Ceramic screen printing
  • Plastics & packaging
  • Membrane switches

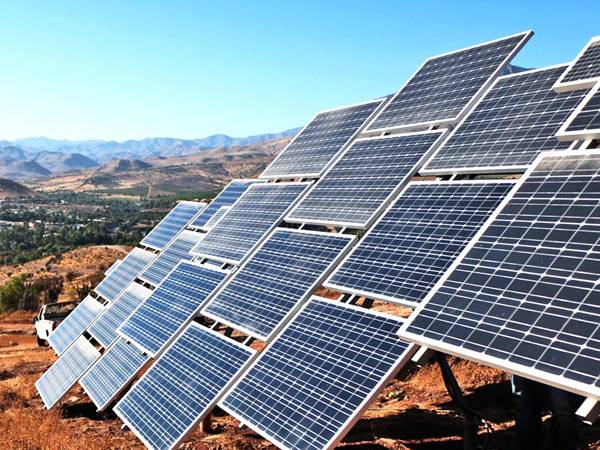

Several screen printed solar panels on the mountain.

Solar panel

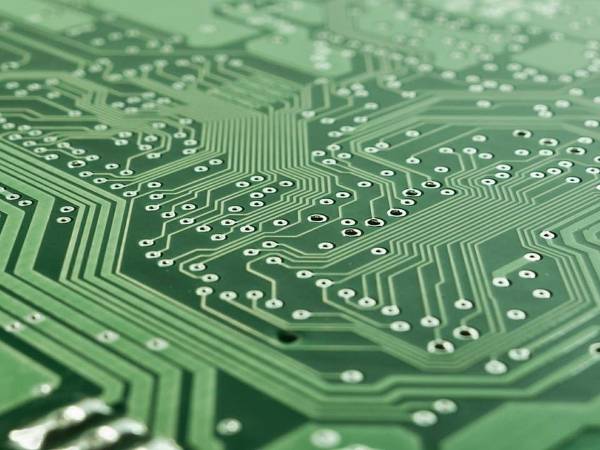

A detail of screen printed pcb on the table.

PCB

A detail of light fabric with colorful patterns.

Textiles

Several glass with bamboo patterns.

Glass

A dish and a container with flower pattern on the table.

Ceramic

Several plastic package on the table.

Plastic package

Dimensions
Line
  • Material: stainless steel wires.
  • Mesh counts: 200 mesh to 500 mesh.
  • Weave method: plain weave.
  • Width: 48" or 40" or other customized widths.
  • Length: 30 m and customized lengths.
SEE MORE SEE LESS
Specifications of Stainless Steel Printing Screen Mesh
Item Mesh count Thread Diameter Open Area Aperture Theoretical ink
mesh/inch μm % μm cm3/m2
SPMS-200-50 200 50 37.0 77 42.0
SPMS-230-35 230 35 46.7 75 37.0
SPMS-250-40 250 40 36.8 62 34.0
SPMS-250-30 250 30 49.7 72 30.0
SPMS-250-35 250 35 43.0 67 32.0
SPMS-270-35 270 35 39.4 59 30.0
SPMS-300-30 300 30 41.7 55 28.0
SPMS-325-30 325 30 38.0 48 24.0
SPMS-325-28 325 28 41.2 50 26.4
SPMS-325-23 325 23 49.8 55 25.4
SPMS-350-25 350 25 43.0 48 18.7
SPMS-400-23 400 23 40.7 41 19.0
SPMS-400-18 400 18 51.3 46 20.0
SPMS-500-18 500 18 41.7 33 15.3
