Stainless Steel Filter Mesh – High Precious in Extremely Harsh Condition

Stainless steel filter mesh is made of monofilament stainless steel wires in plain weave, twill weave or dutch weave process.

Compared with polyester or nylon filter mesh, the stainless steel filter mesh is more durable and strong in various corrosive conditions.

It is ideal for industrial and commercial fields for different fineness filtering and sieving.

  • Plain weave, twill weave or dutch weave for different filtration fineness.
  • Filter fabrics, discs, belts, baskets and test sieves for choice.
  • Ideal for extremely corrosive working conditions.
  • Available in both food grade commercial and industrial applications for filtration and sieving.
A roll of stainless steel filter mesh on gray background.
Available Types
Line

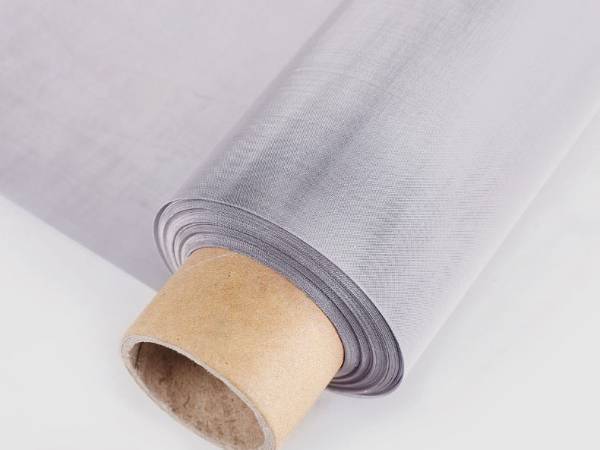

A roll of stainless steel filter mesh fabric on gray background.

Filter Fabric

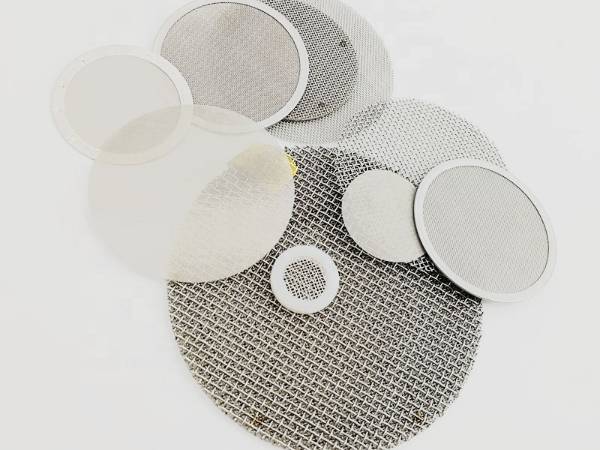

Several pieces of filter disc on gray background.

Filter Disc

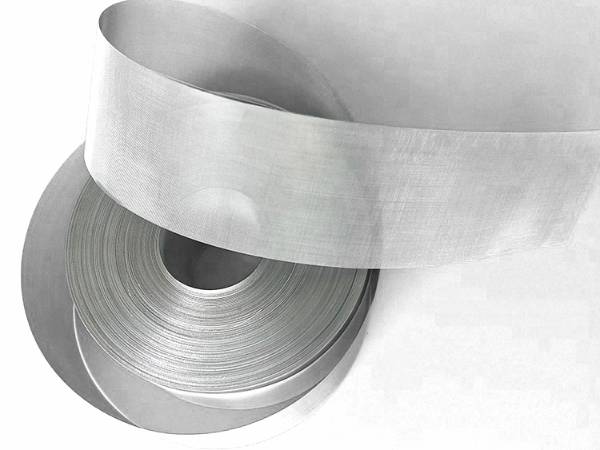

A roll of stainless steel filter belt on gray background.

Filter belt

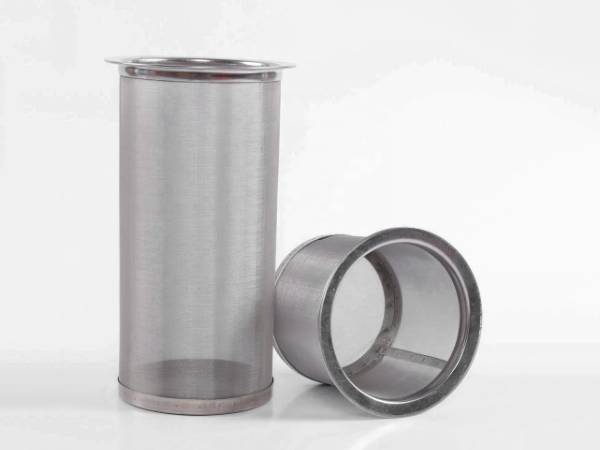

Two pieces of stainless steel filter tubes on gray background.

Filter Tubes

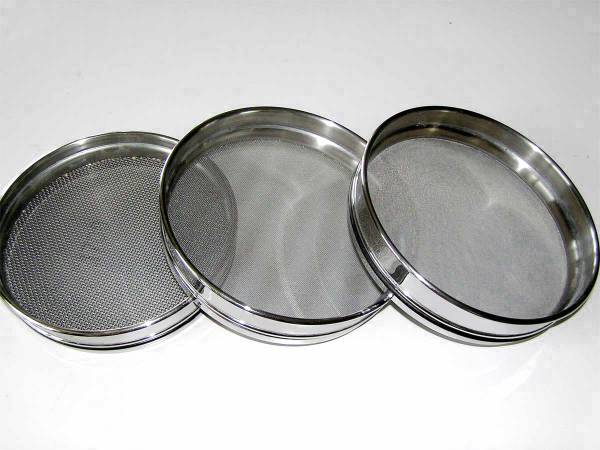

Three pieces of stainless steel test sieves on gray background.

Test Sieve

Resources
Line
Applications Filtering Applications
Applications Screen printing applications
Products Nylon filter mesh
Products Polyester filter mesh
Technical Data Stainless Steel Filter Mesh
Advantages
Line
  • Extremely high temperature resistance. Stainless steel wire mesh can withstand maximum 480 °C temperature.
  • Stable filtration performance. High quality material and stable structure is stable even in the harsh condition, it will not transform and breakage.
  • High strength. It can perform well even in extremely high pressure strength working condition.
  • Corrosion and rust resistance. It has ultra high resistance to acid and alkali and other corrosive elements.
Applications
Applications
Line
  • Mesh belts for continuous screen changer.
  • Filter disc for extuder screen changer.
  • Filter baskets for wine & beer brewing filter.
  • Test sieve for lab sizing and screening.
  • Injector filters
  • Milling mesh.
  • Prefilter of water purification
A stainless steel filter belt is installed on the continuous extruder machine.

Extruder filter

A stainless steel filter basket is installed on the brewing containers.

Brewing filter

A stainless steel test sieve on the testing equipment.

Test sieve

A prefilter is installed on the water pipe.

Water purification

Several layers of stainless steel filter panel is installed in the plansifter.

Milling filter

Dimensions
Line
  • Material: stainless steel wires.
  • Grade: 304, 304L, 316, 316L.
  • Weaving method: plain weave, twill weave and dutch weave.
  • Various custom service: Disc, tube, basket and other special sizes can be customized.
Download Data
SEE MORE SEE LESS
Table 1: Specifications of Plain Weave Stainless Steel Wire Mesh
Item Mesh Size Wire Diameter Mesh Opening Open Area
inch mm inch mm %
SSFMP-1 1 x 1 0.08 2.03 0.92 23.37 84.6
SSFMP-2 2 x 2 0.063 1.6 0.437 11.1 76.4
SSFMP-3 3 x 3 0.054 1.37 0.279 7.09 70.1
SSFMP-4-1 4 x 4 0.063 1.6 0.187 4.75 56
SSFMP-4-2 4 x 4 0.047 1.19 0.203 5.16 65.9
SSFMP-5 5 x 5 0.041 1.04 0.159 4.04 63.2
SSFMP-6 6 x 6 0.035 0.89 0.132 3.35 62.7
SSFMP-8 8 x 8 0.028 0.71 0.097 2.46 60.2
SSFMP-10-1 10 x 10 0.025 0.64 0.075 1.91 56.3
SSFMP-10-2 10 x 10 0.02 0.51 0.08 2.03 64
SSFMP-12-1 12 x 12 0.023 0.584 0.06 1.52 51.8
SSFMP-12-2 12 x 12 0.02 0.508 0.063 1.6 57.2
SSFMP-14-1 14 x 14 0.023 0.584 0.048 1.22 45.2
SSFMP-14-2 14 x 14 0.02 0.508 0.051 1.3 51
SSFMP-16 16 x 16 0.018 0.457 0.0445 1.13 50.7
SSFMP-18 18 x 18 0.017 0.432 0.0386 0.98 48.3
SSFMP-20-1 20 x 20 0.02 0.508 0.03 0.76 36
SSFMP-20-2 20 x 20 0.016 0.406 0.034 0.86 46.2
SSFMP-24 24 x 24 0.014 0.356 0.0277 0.7 44.2
SSFMP-30-1 30 x 30 0.013 0.33 0.0203 0.52 37.1
SSFMP-30-2 30 x 30 0.012 0.305 0.0213 0.54 40.8
SSFMP-30-3 30 x 30 0.009 0.229 0.0243 0.62 53.1
SSFMP-35 35 x 35 0.011 0.279 0.0176 0.45 37.9
SSFMP-40 40 x 40 0.01 0.254 0.015 0.38 36
SSFMP-50-1 50 x 50 0.009 0.229 0.011 0.28 30.3
SSFMP-50-2 50 x 50 0.008 0.203 0.012 0.31 36
SSFMP-60-1 60 x 60 0.0075 0.191 0.0092 0.23 30.5
SSFMP-60-2 60 x 60 0.007 0.178 0.0097 0.25 33.9
SSFMP-70 70 x 70 0.0065 0.165 0.0078 0.2 29.8
SSFMP-80-1 80 x 80 0.0065 0.165 0.006 0.15 23
SSFMP-80-2 80 x 80 0.0055 0.14 0.007 0.18 31.4
SSFMP-90 90 x 90 0.005 0.127 0.0061 0.16 30.1
SSFMP-100-1 100 x 100 0.0045 0.114 0.0055 0.14 30.3
SSFMP-100-2 100 x 100 0.004 0.102 0.006 0.15 36
SSFMP-100-3 100 x 100 0.0035 0.089 0.0065 0.17 42.3
SSFMP-110 110 x 110 0.004 0.1016 0.0051 0.1295 30.7
SSFMP-120 120 x 120 0.0037 0.094 0.0064 0.1168 30.7
SSFMP-150 150 x 150 0.0026 0.066 0.0041 0.1041 37.4
SSFMP-160 160 x 160 0.0025 0.0635 0.0038 0.0965 36.4
SSFMP-180 180 x 180 0.0023 0.0584 0.0033 0.0838 34.7
SSFMP-200 200 x 200 0.0021 0.0533 0.0029 0.0737 33.6
SSFMP-250 250 x 250 0.0016 0.0406 0.0024 0.061 36
SSFMP-270 270 x 270 0.0016 0.0406 0.0021 0.0533 32.2
SSFMP-300 300 x 300 0.0051 0.0381 0.0018 0.0457 29.7
SSFMP-325 325 x 325 0.0014 0.0356 0.0017 0.0432 30
SSFMP-400 400 x 400 0.001 0.0254 0.0015 0.37 36
SSFMP-500 500 x 500 0.001 0.0254 0.001 0.0254 25
SSFMP-635 635 x 635 0.0008 0.0203 0.0008 0.0203 25
SEE MORE SEE LESS
Table 2: Specifications of Plain Dutch Weave Stainless Steel Wire Mesh
Item Mesh Size (Warp × Weft) Wire Diameter Mesh Opening
mm mm mm
SSFMPD-32# 8 x 62 0.63 x 0.45 300
SSFMPD-40# 10 x 79 0.50 x 0.355 250
SSFMPD-48# 12 x 64 0.58 x 0.40 280
SSFMPD-55# 14 x 88 0.40 x 0.30 180
SSFMPD-76# 19 x 140 0.315 x 0.20 140
SSFMPD-80# 20 x 300 0.35 x 0.20 -
SSFMPD-95# 24 x 110 0.355 x 0.25 120
SSFMPD-100# 25 x 140 0.28 x 0.20 100
SSFMPD-120# 30 x 150 0.25 x 0.18 80
SSFMPD-140# 35 x 175 0.224 x 0.16 71
SSFMPD-160# 40 x 200 0.20 x 0.14 60
SSFMPD-180# 45 x 250 0.16 x 0.112 56
SSFMPD-200# 50 x 250 0.14 x 0.11 53
SSFMPD-220# 55.5 x 280 0.14 x 0.10 50
SSFMPD-240# 65 x 330 0.11 x 0.08 36
SSFMPD-280#(1) 70 x 350 0.11 x 0.08 35
SSFMPD-280#(2) 70 x 385 0.11 x 0.07 32
SSFMPD-300# 78 x 700 0.11 x 0.08 30
SSFMPD-315#(1) 80 x 400 0.10 x 0.065 40
SSFMPD-315#(2) 80 x 600 0.10 x 0.06 -
SSFMPD-315#(3) 80 x 800 0.15 x 0.04 -
SSFMPD-320# 81 x 780 0.10 x 0.07 30
SSFMPD-354# 90 x 550 0.12 x 0.05 -
SEE MORE SEE LESS
Table 3: Specifications of Twill Dutch Weave Stainless Steel Wire Mesh
Item Mesh Size (Warp × Weft) Wire Diameter Mesh Opening
mm mm mm
SSFMTD-360# 91 x 787 0.10 x 0.07 25
SSFMTD-400# 101 x 900 0.10 x 0.063 20
SSFMTD-472# 120 x 400 0.10 x 0.075 -
SSFMTD-500# 127 x 1100 0.07 x 0.05 17
SSFMTD-630# 160 x 1500 0.063 x 0.04 15
SSFMTD-650#(1) 165 x 400 0.071 x 0.06 -
SSFMTD-650#(2) 165 x 600 0.071 x 0.05 -
SSFMTD-650#(3) 165 x 800 0.071 x 0.05 25
SSFMTD-650#(4) 165 x 1100 0.071 x 0.045 -
SSFMTD-650#(5) 165 x 1400 0.071 x 0.04 16
