Polyester Monofilament Screen Printing Mesh for Screen/Stencil Maker & Printers

Polyester monofilament mesh is the most widely used screen printing mesh for textile, glass, ceramic, electronics and solar industries.

It provides excellent reproducible printing results and exceptional and accurate image quality and durability.

Additional, the wide ranges of mesh counts for different printing substrates can satisfy your most of printing requirements.

A roll of white and a roll of yellow polyester printing screen mesh on white background.
Custom services
Custom services
Line
  • Different widths options.
  • Company name printing on the bottom.

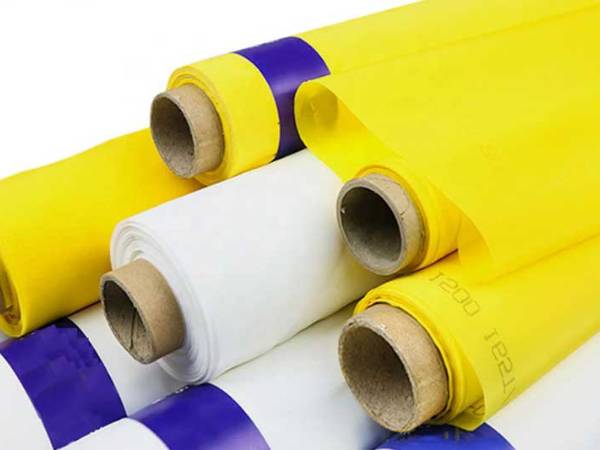

Several white and yellow polyester screen printing meshes on the white background.

Different width options for different printing requirements.

A piece of yellow polyester with different widths.

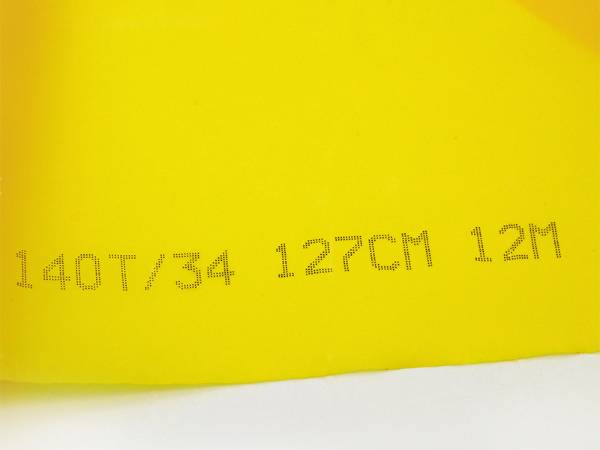

Specifications and company names can be painted on the bottom.

Resources
Line
Applications Glass Screen Printing
Applications Textile Screen Printing
Applications Ceramic Screen Printing
Applications Electronics Screen Printing
Applications Solar Screen Printing
Technical Data Polyester Screen Printing
Advantages
Line
  • Low elongation.
  • High tensile strength.
  • Wide ranges of mesh counts for choice.
  • Ideal for stencil maker and screen printers.
  • Custom service can be supplied for different requirements.
  • Special discount for large orders.
  • Large stocks for urgent orders.
  • ISO certificated factory guarantee printing screen mesh qualities.
Applications
Applications
Line
  • Textile screen printing
  • Glass screen printing
  • Ceramic screen printing
  • PCB (Printed Circuit Boards) screen printing
  • Solar panel printing
  • Plastics & packaging
  • Membrane switches
The decorative glasses are as cladding of the building.

Glass screen printing

A T-shirt is on the printing board of the warehouse.

Textiles screen printing

Several screen printed ceramic cups and dishes.

Ceramic screen printing

Several plastic packages with patterns on the black background.

Plastic screen printing

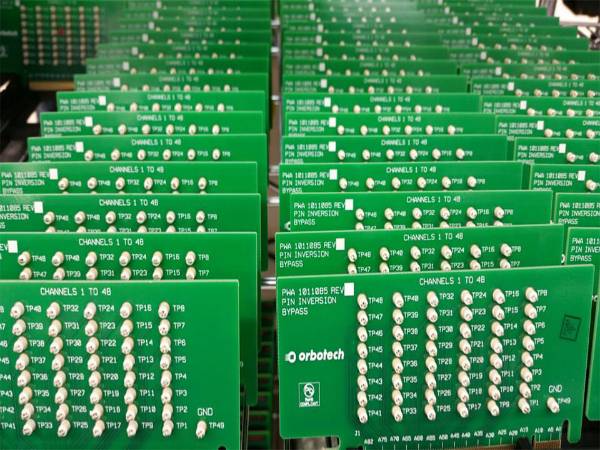

Several printed circuit boards on the floor

PCB screen printing

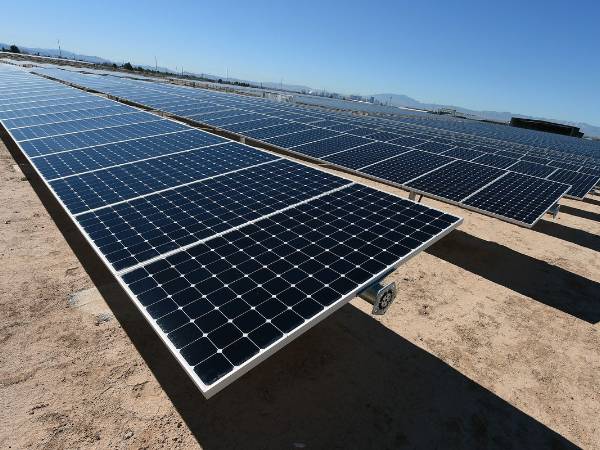

Several solar panels are installed on the ground.

Solar panel screen printing

Dimensions
Line
  • Material: 100% polyester monofilament fiber.
  • Mesh counts: 25 mesh to 420 mesh.
  • Weave method: plain weave.
  • Color: white or yellow.
  • Width: 0.6–3.68 m
  • Length: 30/50/100 m and customized lengths.
Download Data
SEE MORE SEE LESS
Technical Data of Polyester Monofilament Screen Printing Mesh
Specification Mesh Count ThreadDiameter Aperture Opening Thickness Ink Through Volume Theoretically TensileStrength
mesh/inch micron micron % micron cm3/m2 n/cm
10-200 25 200 816 65 440 276 42
10-250 25 250 740 53 465 246 60
12-200 30 200 522 47 485 228 62
16-200 40 200 435 47 420 189 48
20-140 50 140 340 46 280 129 52
20-180 50 180 320 41 350 152 56
24-100 60 100 316 58 190 109 48
24-120 60 120 300 51 210 105 42
32-100 80 100 200 43 160 69 42
36-100 90 100 178 41 175 72 42
39-55 100 55 201 62 100 62 30
39-80 100 80 172 46 142 65 42
43-80 110 80 150 41 130 55 35
48-70 120 70 135 41 115 46 32
53-55 135 55 134 50 105 53 34
54-64 137 64 115 39 102 40 30
59-55 150 55 100 40 93 39 32
64-55 160 55 101 42 105 44 30
64-64 160 64 90 32 106 34 35
72-48 180 48 94 46 80 37 32
72-55 180 55 75 29 92 27 32
77-55 195 55 70 25 88 24 29
80-48 200 48 78 30 84 24 29
80-55 200 55 70 25 88 24 29
90-48 230 48 55 25 78 20 33
100-40 250 40 58 32 65 21 29
110-40 280 40 48 27 65 17 30
120-34 300 34 45 30 55 16 30
120-40 300 40 40 20 55 16 29
140-31 350 31 35 26 48 13 27
140-34 350 34 30 20 55 10 30
150-31 380 31 32 23 47 10 28
150-34 380 34 30 20 69 10 30
165-31 420 31 25 17 49 8 28
