PA, PET & SS Fabrics for Flour and Powders Sieving and Grading

Flour mill mesh is widely used in the mill industries for food sieving, screening and filtering.

It is made of non-metallic nylon or polyester monofilament yarns or stainless steel yarns. Simple but stable structure can ensure the long lifespan and excellent screening performance for different screening materials and fineness.

Flour mill mesh can be made into pieces, tubes, and other shapes to fit different sieving machines, including plansifter, purifiers and centrifugal sifters.

A piece of nylon flour mill mesh on white background.
Resources
Line
Products Stainless steel filter mesh
Products Nylon filter mesh
Products Polyester filter mesh
Technical Data Flour Mill Mesh
Technical Data Flour Mill Mesh
Advantages
Line
  • Accord with FDA standard.
  • Wide ranges of materials and mesh counts for options.
  • Available for different models of sieving & milling equipment.
  • Stable structure for long lifespan.
  • Efficient milling performance for flour production.
  • Excellent Tear Resistance.
  • Excellent Dimensional Stability.
  • Higher Tension Strength & Break Point.
  • Low Elongation.
Applications
Applications
Line
  • Plansifter.
  • Purifiers.
  • Centrifugal sifters
  • Other powder filtering

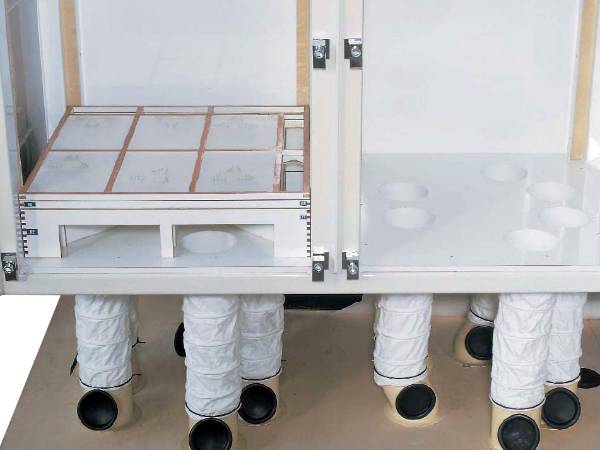

Several pieces of flour mill meshes are installed in the plansifter.

Plansifter

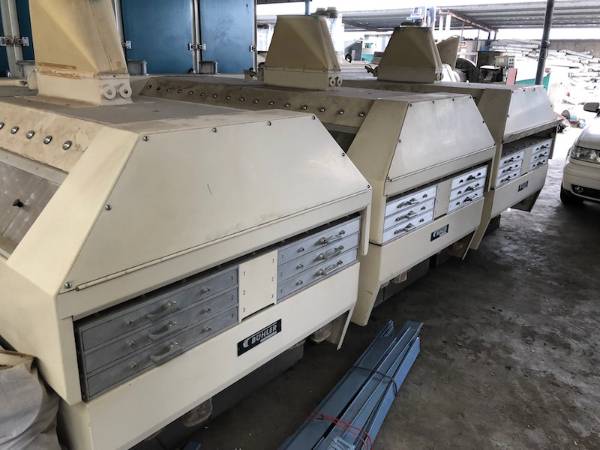

AThree flour purifiers are in the workshop.

Purifier

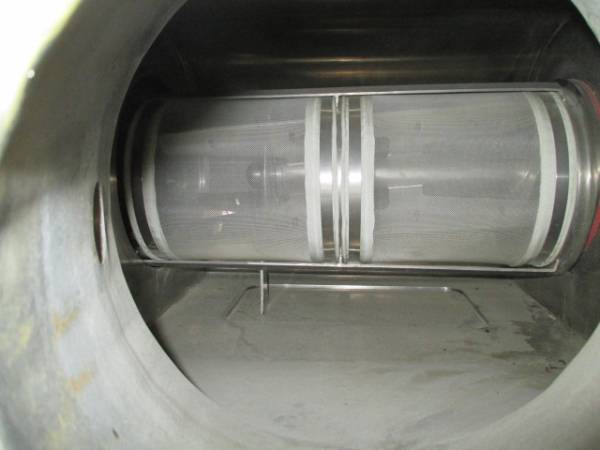

Two flour mill meshes are installed on the centrifugal sifter.

Centrifugal sifter

Available Types
Line
  • Nylon & Polyester type
    • Milling series. For soft wheat and rye
    • XXX series. For medium to hard wheat and high capacity sifters
    • GG series. For gritting gauze for coarse and scalping sieves.
  • Metal mesh type
    • Stainless steel filter mesh.

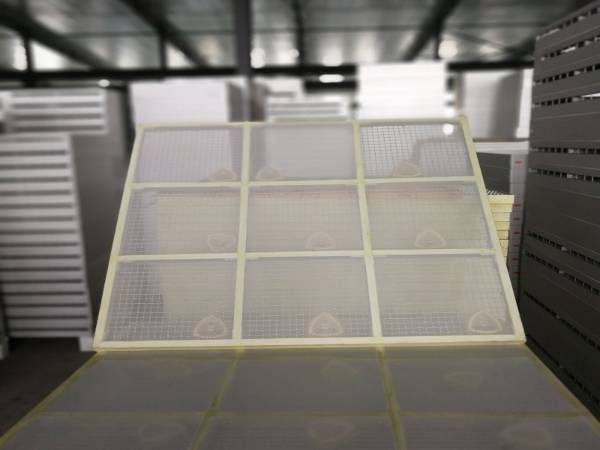

Several pieces of nylon milling sifter sieve mesh in the warehouse.

Nylon mesh

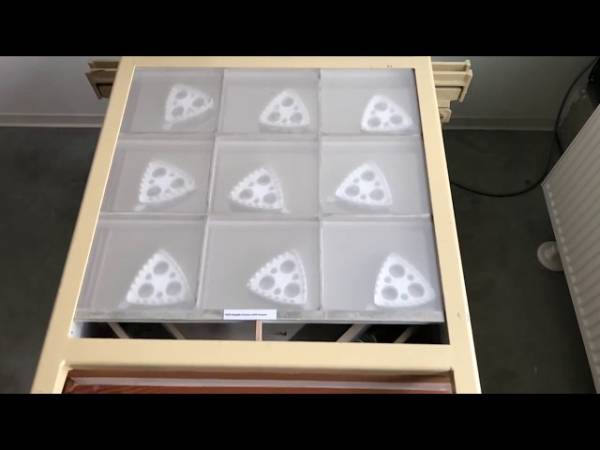

Several pieces of polyester flour sifter mesh in the warehouse.

Polyester mesh

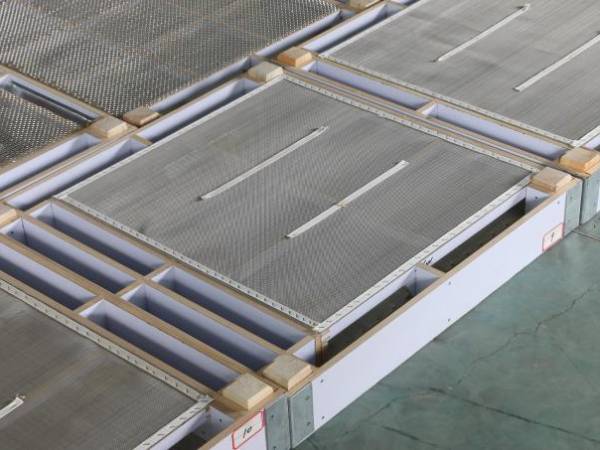

Several pieces of stainless steel flour mill mesh in the warehouse.

Stainless steel mesh

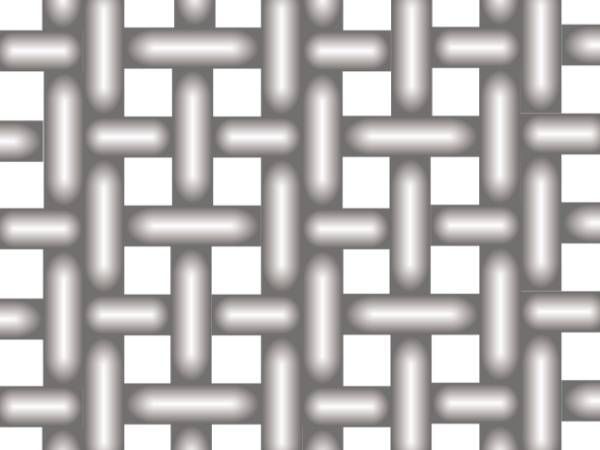

A structure of milling series nylon flour mill mesh.

Milling Series

A structure of GG series nylon flour mill mesh.

GG Series

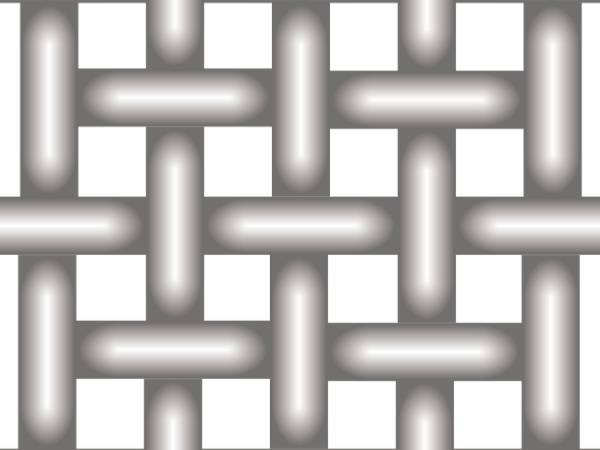

A structure of XXX series nylon flour mill mesh.

XXX Series

Dimensions
Line
  • Material: nylon wire, polyester (PET) wire, stainless steel wire.
  • Weaving method: plain weave.
  • Roll width: 105/115/136/158 cm or customized sizes.
  • Roll length: 30–80 m or customized sizes.
  • Tailored service: cut into pieces/discs, sewing or welding tubes, belts or ribbons.
Download Data
SEE MORE SEE LESS
Common Specification of GG Series Flour Mill Mesh
Item Mesh Opening Thread diameter Thread Count Open Area Weight
(μm) (μm) mesh/cm mesh/inch (%) (g/m2)
10GG 2000 550 3.9 9.9 61.5 237.3
12GG 1800 450 4.4 11.2 64 180
14GG 1600 400 5 12.7 64 177.8
15GG 1400 400 5.6 14.2 60.5 197.5
16GG 1300 350 6.1 15.5 62.1 165
18GG 1188 350 6.5 16.5 59.7 177
19GG 1080 350 7 17.8 57 190.4
20GG 1000 300 7.7 19.6 59.2 153.8
22GG 950 300 8 20.3 57.8 160
24GG 850 300 8.7 22.1 54.6 173.9
26GG 800 300 9.1 23.1 52.9 181.8
27GG 750 250 10 25.4 56.3 138.9
28GG 710 250 10.4 26.4 54.7 144.7
30GG 670 250 10.9 27.7 53 151
31GG 610 250 11.6 29.5 50.3 161.5
32GG 600 250 11.8 30.0 49.8 163.4
34GG 560 220 12.8 32.5 51.5 137.9
36GG 530 220 13.3 33.8 49.9 143.4
38GG 500 220 13.9 35.3 48.2 149.4
40GG 475 200 14.8 37.6 49.5 131.7
42GG 450 200 15.4 39.1 47.9 136.8
44GG 425 200 16 40.6 46.2 142.2
45GG 400 180 17.2 43.7 47.6 124.1
47GG 375 180 18 45.7 45.7 129.7
50GG 355 150 19.8 50.3 49.4 99
52GG 335 150 20.6 52.3 47.7 103.1
54GG 315 150 21.5 54.6 45.9 107.5
56GG 308 150 21.8 55.4 45.2 109.2
58GG 300 150 22.2 56.4 44.4 111.1
60GG 280 150 23.3 59.2 42.4 116.3
62GG 275 150 23.5 59.7 41.9 117.6
64GG 265 150 24.1 61.2 40.8 120.5
66GG 250 120 27 68.6 45.7 86.5
68GG 243 120 27.5 69.9 44.8 88.2
70GG 236 120 28.1 71.4 43.9 89.9
72GG 224 120 29.1 73.9 42.4 93
74GG 212 120 30.1 76.5 40.8 96.4
SEE MORE SEE LESS
Common Specification of Milling Series Flour Mill Mesh
Item Mesh Opening Thread Diameter(warp/weft) Wire Diameter(warp/weft) Open Area
(μm) (μm) mesh/cm mesh/inch (%)
3M 300 100 + 2 × 60 100 24/25 61/64 54
4M 280 100 + 2 × 60 100 25.5/26.5 65/67 53
5M 250 100 + 2 × 60 90 27.5/29 70/74 51
6M 212 90 + 2 × 60 80 32/30 81/76 49
7M 200 80 + 2 × 60 80 33.5/35.7 85/91 48
8M 180 80 + 2 × 60 70 35.7/40 91/102 46
8.5M 160 70 + 2 × 60 70 40/43.5 102/111 44
9M 150 70 + 2 × 60 60 42.5/47.6 108/121 44
9.5M 140 60 + 2 × 60 60 43/50 109/127 43
10M 132 60 + 2 × 50 60 47/52 119/132 44
10.5M 125 60 + 2 × 50 60 48.5/54 123/137 40
11M 118 60 + 2 × 50 50 50.5/59.5 128/151 42
12M 112 60 + 2 × 50 50 51.5/61.5 131/156 40
12.5M 106 60 + 2 × 43 50 56/64 142/163 38
13M 100 60 + 2 × 50 50 57/66.7 145/169 38
14M 95 50 + 2 × 43 50 61/69 155/175 38
14.5M 90 50 + 2 × 43 50 62.5/71.5 159/182 37
15M 85 50 + 2 × 43 50 65/74 165/188 34
17M 80 50 + 2 × 43 44 68/81 173/206 35
20M 75 50 + 2 × 43 44 70/84.7 178/215 34
21M 71 50 + 2 × 43 44 74/87.7 188/223 33
25M 63 43 + 2 × 43 44 78/94 198/239 30
SEE MORE SEE LESS
Common Specification of XXX Series Flour Mill Mesh
Item Mesh Opening Thread Diameter Thread Count Open Area
(μm) (μm) Mesh/cm mesh/inch (%)
3XXX 301 140 22.7 57.6 47
4XXX 280 140 23.8 60.5 44
5XXX 257 120 26.5 67.3 47
6XXX 213 120 30 76.2 41
7XXX 203 120 31 78.74 39
8XXX 182 100 35.5 90.17 42
8.5XXX 163 100 38 96.52 38
9XXX 154 90 41 104.14 40
9.5XXX 143 90 43 109.22 38
10XXX 133 80 47 119.38 39
10.5XXX 124 80 49 124.46 37
11XXX 120 80 50 127 36
12XXX 112 70 55 139.7 38
12.5XXX 105 70 57 144.78 36
13XXX 99 70 59 149.86 34
14XXX 97 70 60 152.4 34
15XXX 92 60 66 167.64 36
16XXX 95 50 69 175.26 43
17XXX 91 50 71 180.34 42
