Nylon Screen Printing Mesh – Abrasive Resistance and High Elasticity

Nylon screen printing mesh, also called PA screen printing mesh, is made of polyamide yarn. It is an alternative to polyester screen printing mesh for various substrates printing, especially in ceramic, plastic and glass industries.

Nylon screen printing mesh has excellent abrasive resistance performance to be used with high abrasive inks and the high elasticity performance make it easy to printing hollow ware glass or ceramics.

Five rolls of nylon printing screen mesh on gray background.
Resources
Line
Applications Glass Screen Printing
Applications Ceramic Screen Printing
Applications Textile Screen Printing
Applications Electronics Screen Printing
Applications Solar Screen Printing
Products Polyester Screen Printing Mesh
Products Stainless Steel Screen Printing Mesh
PDF Nylon Screen Printing
Advantages
Line
  • Abrasive resistance.
  • High elasticity.
  • Excellent adhesion properties.
  • Wide ranges of mesh counts for choice.
  • Ideal for shaped substrates.
  • Custom service can be supplied for different requirements.
  • Special discount for large orders.
  • Large stocks for urgent orders.
  • ISO certificated factory guarantee printing screen mesh qualities.
Applications
Applications
Line
  • Glass screen printing
  • Ceramic screen printing
  • Tiles screen printing
Five glass bottles with screen printed patterns.

Glass screen printing

A wall is adhered with colorful tiles.

Ceramic tiles screen printing

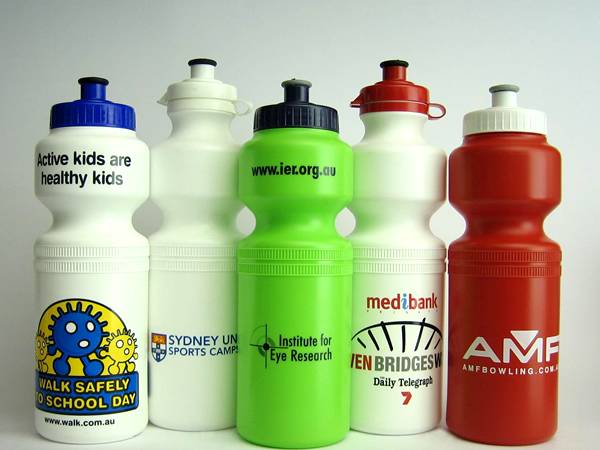

Five plastic bottle with screen printed patterns.

Plastic screen printing

Dimensions
Line
  • Material: polyamide6 (PA6) and polyamide66 (PA66).
  • Mesh counts: 10 mesh to 330 mesh.
  • Weave method: plain weave.
  • Color: white or yellow.
  • Width: 0.6–3.68 m
  • Length: 30/50/100 m and customized lengths.
Download Data
SEE MORE SEE LESS
Specifications of Nylon Screen Printing Mesh
Type Mesh Opening Mesh Count Thread Diameter Open Area Thickness
(μm) (mesh/inch) (μm) (%) (μm)
PSMN-4-600 1900 10 600 60 1200
PSMN-5-500 1500 13 500 55 1000
PSMN-6-400 1267 15 400 57 800
PSMN-7-350 1079 18 350 56 700
PSMN-8-350 900 20 350 51 700
PSMN-9-300 811 23 300 58 570
PSMN-9-250 861 23 250 59 500
PSMN-10-250 750 25 250 55 500
PSMN-10-300 700 25 300 48 600
PSMN-12-300 533 30 300 40 600
PSMN-12-250 583 30 250 48 500
PSMN-14-300 414 36 200 33 510
PSMN-16-200 425 41 200 45 340
PSMN-16-220 405 41 220 40 385
PSMN-16-250 375 41 250 35 425
PSMN-20-150 350 51 150 46 255
PSMN-20-200 300 51 200 35 340
PSMN-24-120 297 61 120 51 235
PSMN-24-150 267 61 150 40 255
PSMN-28-120 237 71 120 44 210
PSMN-30-120 213 76 120 40 204
PSMN-32-100 213 81 100 45 170
PSMN-32-120 193 81 120 41 205
PSMN-34-100 194 86 100 44 180
PSMN-36-100 178 91 100 40 170
PSMN-40-100 150 102 100 35 170
PSMN-56-60 119 142 60 43 102
PSMN-64-60 96 163 60 37 102
PSMN-72-50 89 183 50 40 85
PSMN-80-50 75 203 50 35 85
PSMN-90-43 68 229 43 37 85
PSMN-100-43 57 254 43 31 80
PSMN-110-43 48 279 43 25 76
PSMN-120-43 40 305 43 21 80
PSMN-120-38 45 305 38 25 65
PSMN-130-35 42 330 35 25 60
